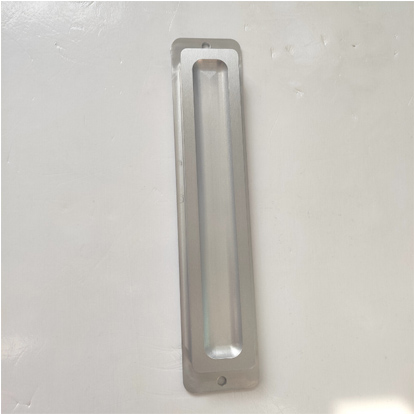

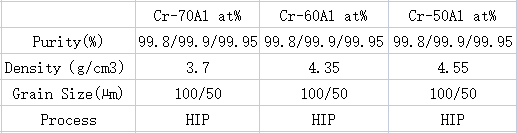

CrAl Alloy Targets
Aluminum chromium (AlCr) targets react with nitrogen during the reaction deposition process to ideally form a super-hard nitride coating. Due to the CrAlN coating at high temperatures still have high hardness and oxidation resistance, so the machine tool can be used in cutting high feed can be, so as to improve the cutting speed of the equipment and workpiece cutting quality.
Nickel chromium target materials have excellent antioxidant and corrosion resistance properties, adapt to a wide range of temperature changes, and are used to protect the film layer or workpiece surface. In the vacuum coating industry, NiCr alloy targets and thin films are widely used for surface protection films such as wear resistance,corrosion resistance, and heat resistance, as well as resistance films,involving different fields such as low radiation glass,microelectronics,magnetic recording, semiconductors, and thin film resistors.
Specification of Nickel Chromium Targets
| Purity | Impurity（≤ppm） | ||||||
| Fe | Al | Si | C | N | O | ||
| 99.5 | 3000 | 1000 | 1500 | 150 | 100 | 200 | 100 |
| 99.7 | 1500 | 800 | 1000 | 150 | 100 | 200 | 100 |
| 99.8 | 1200 | 300 | 600 | 150 | 100 | 200 | 100 |
| 99.9 | 600 | 200 | 500 | 100 | 100 | 100 | 50 |
| 99.95 | 200 | 100 | 200 | 100 | 100 | 100 | 50 |
| 99.99 | 50 | 10 | 10 | 50 | 50 | 50 | 30 |
Nickel Vanadium Targets
The nickel vanadium sputtering target is made by adding vanadium to the nickel melt, with a vanadium content of 7±0.5%,to produce a nickel vanadium alloy target material. This alloy has weak ferromagnetism and is more conducive to magnetron sputtering. The purity of nickel vanadium target material is 99.%-99.99%, and the average grain size is less than 150 μ m.The grains are fine and evenly distributed.
Specification of Nickel Vanadium Targets
| Purity | Impurity（≤ppm） | ||||||
| Fe | Al | Si | C | N | O | S | |
| 99.5 | 3000 | 2000 | 2000 | 100 | 100 | 200 | 100 |
| 99.9 | 300 | 300 | 300 | 100 | 100 | 200 | 50 |
| 99.95 | 200 | 200 | 200 | 100 | 100 | 200 | 50 |
| 99.99 | 20 | 30 | 20 | 100 | 30 | 100 | 20 |
In integrated circuits,nickel targets are often used to prevent weak bonding caused by low melting point compounds formed from the reaction of gold,silver, etc., with silicon wafers; Vanadium serves as a barrier layer to prevent the diffusion of pure nickel bonding layer and wire layer metal. Nickel vanadium target can simultaneously achieve the advantages of nickel sputtering target and vanadium sputtering target, completing the preparation of nickel layer (bonding layer) and vanadium layer (barrier layer) in one go. Nickel vanadium targets are widely used in fields such as solar energy and microelectronics.
Nickel Alloy Targets
Nickel alloy targets is one of the company’s main products, including superalloy, precision alloy,corrosion-resistant steel and other special steel varieties and new materials developed according to customer requirements. Products include: NiAl, NiCrAlY, NiCrAlYHf, NiCrAlYRu, permalloy, NiCrAlSi, 690,Inconel600,etc.
Co Alloy Targets
Cobalt is a raw material for heat-resistant alloys,tool steels, hard alloys, and magnetic materials, with high Curie temperature, wear resistance, and heat resistance. Especiallyin magnetic materials, it is the main element that improves magnetization strength.Our company produces various cobalt alloy targets, including Co,CoFe, CoCr X(X=Ta,Pt,SiO,etc.), CoFeTa,CoFeTaZr,CoNiFe,CoNiCr,CoTa,CoPt,CoMn,CoZr,CoNb,and CoNbZr, among other magnetic targets;Wear resistantalloy targets such as CoCrMo and CoCrW.
The special properties of cobalt based alloy targets make them widely used in fields such as magnetic recording materials,magnetic sensors and electronic storage devices, wear-resistant and corrosion-resistant parts, and the products produced are widely used in various fields such as medical treatment,computers,aerospace,energy and power,and high-speed rail.
Chromium Targets
ing, powder loading, degassing,and hot isostatic pressing, we obtain chromium targets with high density, low gas content, and low inclusions. Our company can not only provide flat,tubular, and irregular targets according to user needs, but also provide chromium targets with different microstructures according to different user scenarios.
Specification of Chromium Targets
| ITEM Purity(%) | Impurity（≤ppm） | |||||
| Fe | Al | Si | C | S | 0 | |
| 99.50 | 1500 | 800 | 1000 | 150 | 100 | 1500 |
| 99.70 | 1200 | 600 | 1000 | 100 | 50 | 1000 |
| 99.80 | 2000 | 50 | 100 | 200 | 100 | 800 |
| 99.80 | 900 | 200 | 300 | 100 | 50 | 800 |
| 99.90 | 1000 | 100 | 150 | 100 | 100 | 1000 |
| 99.90 | 500 | 80 | 100 | 100 | 50 | 500 |
| 99.95 | 200 | 50 | 80 | 80 | 100 | 500 |
| 99.99 | 100 | 20 | 50 | 80 | 100 | 200 |
Chromium is a silver white glossy metal, high purity chromium having certain ductility. Chromium containing impurities is hard and brittle, and can be dissolved in strong alkaline solutions. Chromium has high corrosion resistance, and in air, even in a hot state, it oxidizes slowly and is insoluble in water.Due to these excellent properties, chromium is widely used as a target material in various fields such as tooling, decoration,curtain wall glass,flat display, magnetic recording,automotive components, and microelectronics, with a wide range of applications.
